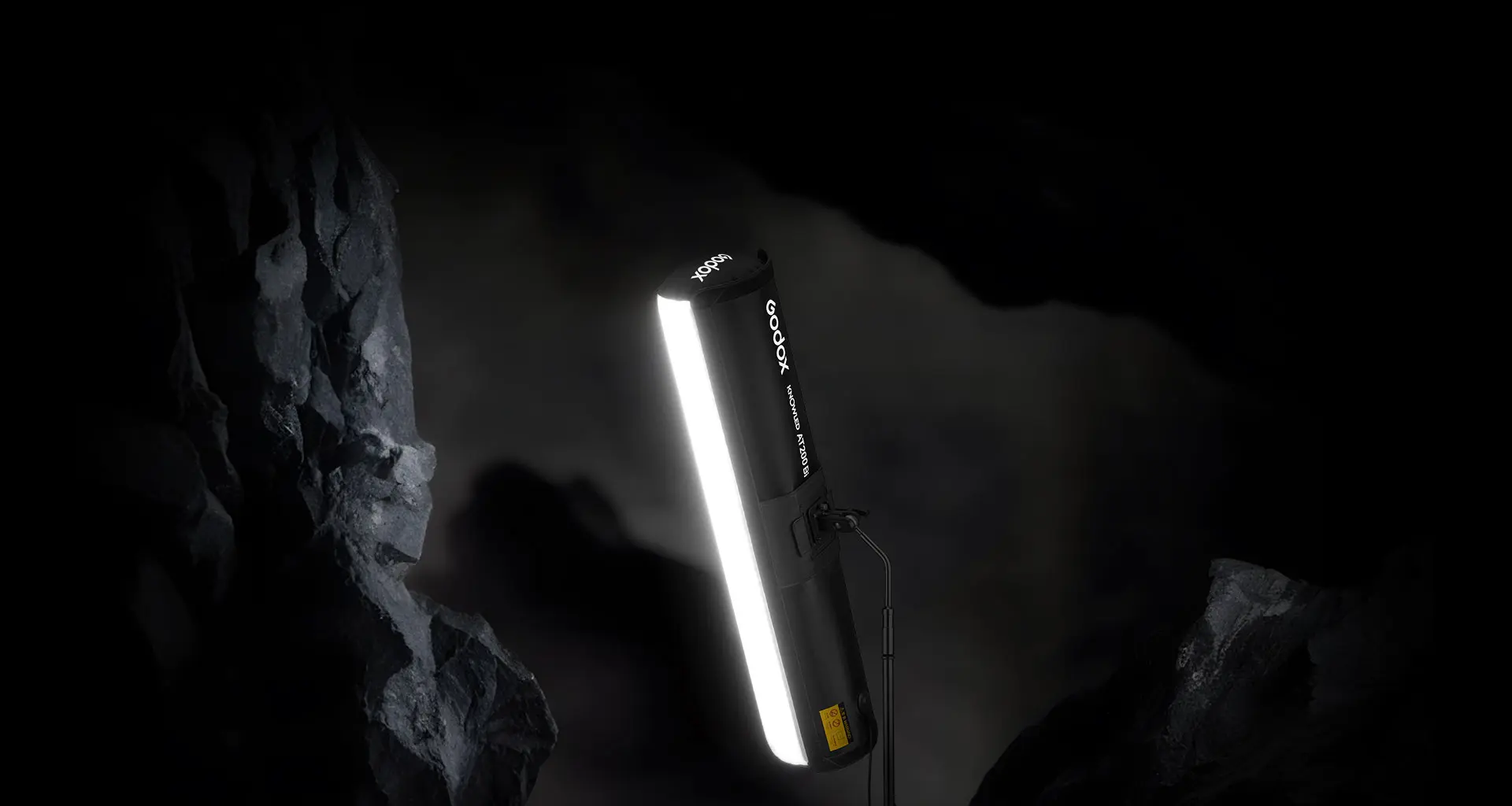

Air tube AT200 Bi
Air tube AT200 Bi
Air tube AT200 Bi
Tech Specs
| Model | AT200Bi |
| Power Supply | 100V-240V~50/60Hz 2.1A |
| Max. Power | ≈210W |
| CCT | 2700-8500K |
| Brightness Range | 0%-100% |
| Dimming Curves | linear, s-curve, exponential, logarithmic |
| FX Modes | 11 |
| CRI | Average≥96 |
| TLCl | Average≥96 |
| Waterproof Grade of Light Body | IP65 |
| Controlling Methods | DMX 512 Control (support RDM protocol),
2.4GHz Wireless Control, Bluetooth APP Control |
| Bluetooth Controlling Distance | Max. 30m |
| 2.4G Remote Control Distance | Max. 60m |
| Type-A USB Port | Firmware Upgrade/5V⎓1A Power Supply |
| Dimension | Light Body: 280mm*267mm*1226mm/ 11”*11″*48″
(With air bag and in the inflated state, does not include the connection cable.) Controller: 124mm*132mm*270mm |
| Netweight≈ | Light Body: 2.15kg (Including airbag)
Controller: 2.8kg |
| CCT | Unit | 1m | 2m | 3m |
| 2800K | lux | ≈1720 | ≈549 | ≈267 |
| fc | ≈160 | ≈51 | ≈24.8 | |
| 3200K | lux | ≈1860 | ≈599 | ≈290 |
| fc | ≈173 | ≈55.6 | ≈27 | |
| 4300K | lux | ≈2160 | ≈692 | ≈343 |
| fc | ≈200 | ≈64.3 | ≈31.9 | |
| 5600K | lux | ≈2230 | ≈712 | ≈353 |
| fc | ≈207 | ≈66.2 | ≈32.8 | |
| 6500K | lux | ≈2210 | ≈704 | ≈349 |
| fc | ≈205 | ≈65.4 | ≈32.4 | |
| 7500K | lux | ≈2150 | ≈685 | ≈339 |
| fc | ≈200 | ≈63.6 | ≈31.5 | |
| 8500K | lux | ≈2050 | ≈654 | ≈325 |
| fc | ≈191 | ≈60.7 | ≈30.2 |
Downloads
Product Firmware
Product Manual
